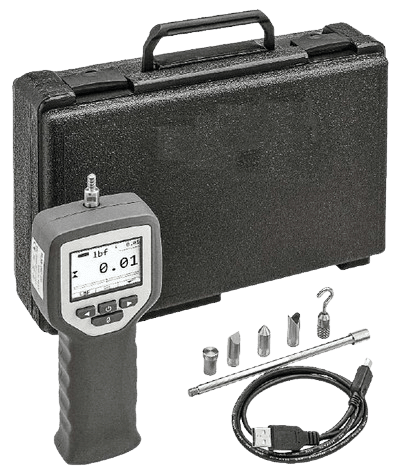

Practical force gauge for individual use between manual and test bench force gauge up to 2500 N. While the DFG unit outputs the basic functions such as the current measured value and maximum, displays the DFC type, in addition, statistical mean values and can transmit the data via Bluetooth.
The USPs in detail:
• OLED Display
• DMS Technology
• Display in N, gf, kgf, lbf
• Sampling rate 10 or 25 kHz
• Excellent for small loads
• Very high accuracy
• Coloured bar display for measuring ranges
• Statistical evaluations
• Data output to PC via USB or Bluetooth
• Screwable to testing machine
• Programmable
• Battery operated
• Incl. transport case
• Incl. Accessories

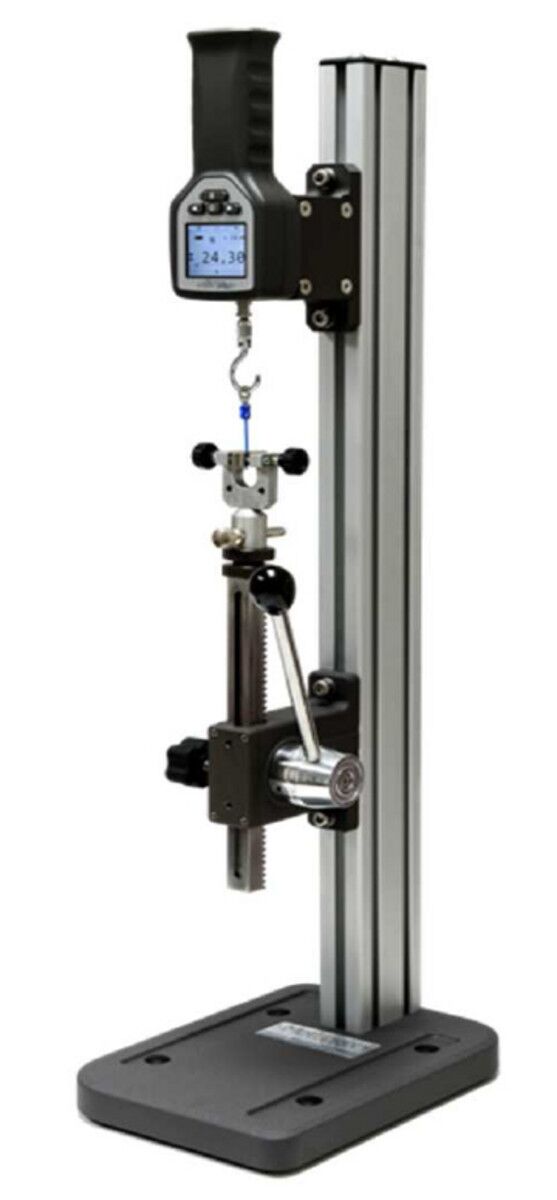

– Easy-to-use force test bench together with DFG or DFC force gauge.
– Force range in three versions: 500, 1500, and 2500 N.
– Very good dosing of the manual force transmission by lever or handwheel.
– Inexpensive solution for incoming goods and production.
The Advantages in detail:
• Tensile or compression test
• Equipment with DFC hand tool
• Precise mechanics
• Optionally with odometer
• Various clamping tools available
• Ideal for production use
• Convertible for horizontal use
• Robust design
| Model | MTL-110 | MTL-330 | MTH-550 |
|---|---|---|---|
| Nominal load | 500 N | 1500 N | 2500 N |
| Cross-slide path | 150 mm | 100 mm | 100 mm |
| Travel per revolution | 76 mm | 76 mm | 0,76 mm |
| Blockable | X | X | X |
| Vertical test path | Standard | Standard | Standard |
| Horizontal test path (convertible) | X | X | |
| Screwable with work surface | X | X | X |
| Connection thread for clamping tools | M6 | M10 | M10 |
| Span | 150 mm | 100 mm | 100 mm |
| Operation | Levers | Levers | Handwheel |
| Adapter set for clamping tools | X | X | X |
